The D&M LB-36 Orchard Berm Blower is built to clear orchard berms quickly and efficiently. Designed with adjustable air outlet nozzles, it directs airflow into the center of adjacent rows to reduce debris blowback and leave berms clean. A rear-mounted trailer hitch allows operators to tow a 300-gallon herbicide sprayer, performing two jobs in a single pass. The direct-drive 2-speed gearbox eliminates belts and extra shaft bearings, minimizing maintenance and reducing downtime while delivering dependable orchard performance.

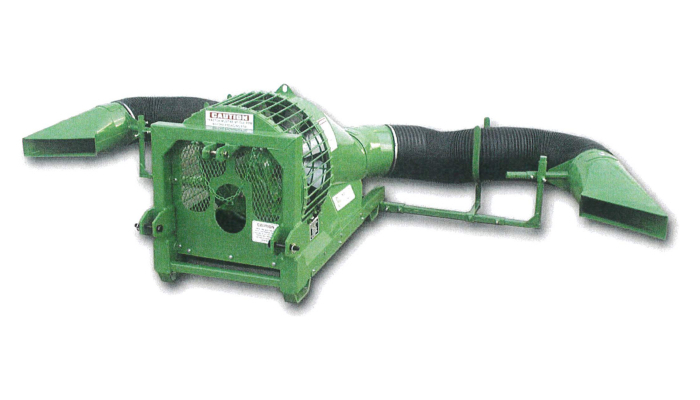

LB-36 Orchard Berm Blower
Standard Features
Chassis: PTO-driven berm blower for orchard berm debris removal
Controls: Rear mounted hitch receiver gives growers the option to tow an herbicide sprayer with the blower in tandem.
Filters: Adjustable air outlet nozzles for controlled airflow direction
Drive Shafts: Direct-drive 2-speed gearbox eliminates drive belts and extra shaft bearings
Options
- Single side mechanical shut-down baffle when doing boarders or roadsides.
- 38″ Fan upgrade option (85 pto. HP req.)
- Walnut & Pecan Width extensions
- Cherry Orchard outlets to prevent rain damage before harvest
- Reduced maintenance and downtime through simplified design
Specifications
- ● Tractor requirements: 36 in. fan – 85 hp
- ● Length: 90″
- ● Width: Adjustable for 16’–24’ rows
- ● Weight: 900 lbs.
