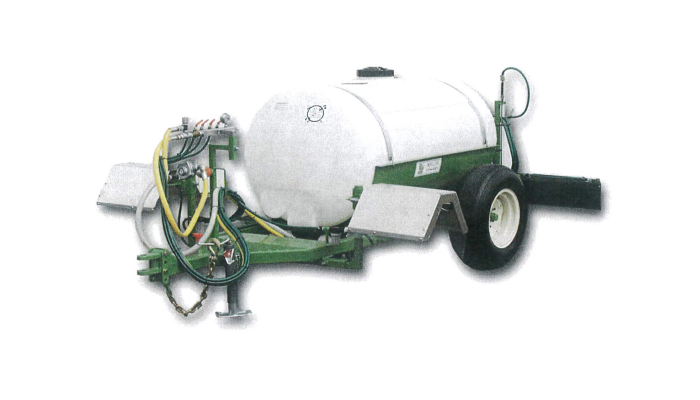

The HSVP-300 Vineyard Herbicide Sprayer is a compact, versatile sprayer designed for efficient vineyard applications. Featuring a 300-gallon poly tank mounted on a steel saddle, it uses high-volume jet agitation for consistent mixing. Built with a durable chassis, adjustable aluminum spray booms, and multiple control options, it delivers reliable coverage for 10’–12’ rows. With a lightweight design, flotation tires, and straightforward serviceability, the HSVP-300 is an economical solution for growers who need dependable performance in the field.
HSVP-300 Vineyard Herbicide Sprayer
Standard Features
Tank: 300 gal. poly tank mounted on heavy-duty steel saddle with high-volume jet agitation
Chassis: Rectangular tube construction with axle using 3500 lb. Ag hub and spindles
Controls: Tractor-mounted control manifold with pressure regulator, pressure gauge, and independent spray boom shutoff valves
Pump: Choice of Ace hydraulic centrifugal pump or engine-driven centrifugal pump
Spray Booms: Aluminum spray hoods, adjustable for 10’–12’ rows, adjustable height, and breakaway hinges
Spray Wand: Single rear-mounted 36" hand spray wand with 30’ hose and quick-disconnect connections for easy removal
Filters: One suction filter and four discharge filters mounted for each boom for easy access and cleaning
Wheels: 15 x 10 6-on-6 wheel, 12-ply 11L–15 rib implement flotation tires
Options
- Single hydraulic chemical shut off valve
- Single Tee-jet electric solenoid shut off valve with toggle-switch control box
- Three (3) Bank Tee-jet electric solenoid shut off valves w/ toggle switch control box. (Allows for independent spray boom control)
- In-line flow meters
- Rate controllers
- Dual mounted spot spray wands
Specifications
- ● Tractor requirements: 50 hp
- ● Length: 148″
- ● Width: 60″
- ● Height: 62″
- ● Ground clearance: 10″
- ● Weight: 950 lbs.
