The HSSV 300 Vineyard Herbicide Sprayer is built for vineyard operations that require precision, durability, and compact design. With a 300-gallon stainless steel tank, adjustable spray booms for 10’–12’ rows, and multiple pump options, it provides consistent performance in tight vineyard conditions. Heavy-duty chassis construction, stainless steel plumbing, and flotation tires ensure reliability, while flexible control options make it easy to operate from the field or tractor cab. This unit offers growers a rugged and serviceable solution for vineyard herbicide application.

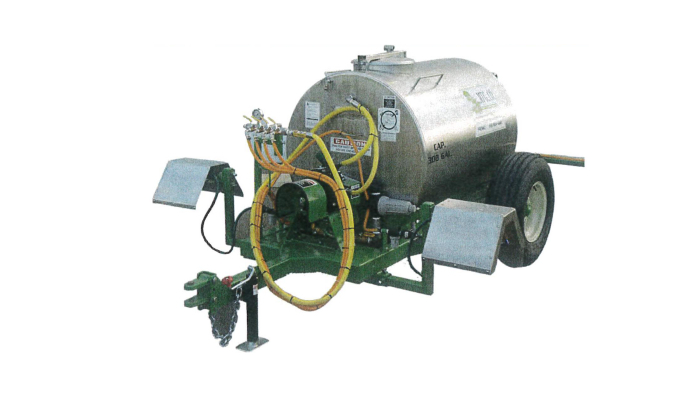

HSSV-300 Vineyard Herbicide Sprayer
Standard Features
Tank: 300 gal. stainless steel tank with 2" fill, mechanical agitation (jet agitation used with centrifugal pumps)
Chassis: Heavy-duty rectangular tube construction with axle using 3500 lb. Ag hub and spindles
Controls: Tractor-mounted control manifold with pressure regulator, pressure gauge, and independent spray boom shutoff valves
Pump: Choice of P.T.O. driven Comet P48 diaphragm pump, Ace hydraulic centrifugal pump, or engine-driven centrifugal pump
Spray Booms: Aluminum spray hoods adjustable for 10’–12’ rows, adjustable height, and breakaway hinges
Spray Wand: Single rear-mounted 36" hand spray wand with 30’ hose and quick-disconnect connections for easy removal
Filters: One suction filter and four discharge filters mounted for each boom for easy access and cleaning
Wheels: Heavy-duty 15 x 10 6-on-6 wheel, 12-ply 12.5L–15 rib implement flotation tires
Drive Shafts: Heavy-duty #4 Bondioli and Pavesi driveline (used with P.T.O. driven pumps)
Options
- Single hydraulic shut off valve
- Single electric shut off valve with control box
- Three electric shut off valve with control box (Allows for independent spray boom control)
- All electric tractor cab mounted controls (Allows operator control of pressure regulator, spray booms from tractor cab)
- Sprayer mounted boom flow meters
- Hydraulic driven Comet P48 diaphragm pump
- Dual mounted hand spray wand
Specifications
- ● Tractor requirements: 50 hp
- ● Length: 150″
- ● Width: 70″
- ● Height: 62″
- ● Ground clearance: 10″
- ● Weight: 1100 lbs.
